140 bar.Up to 3 inches

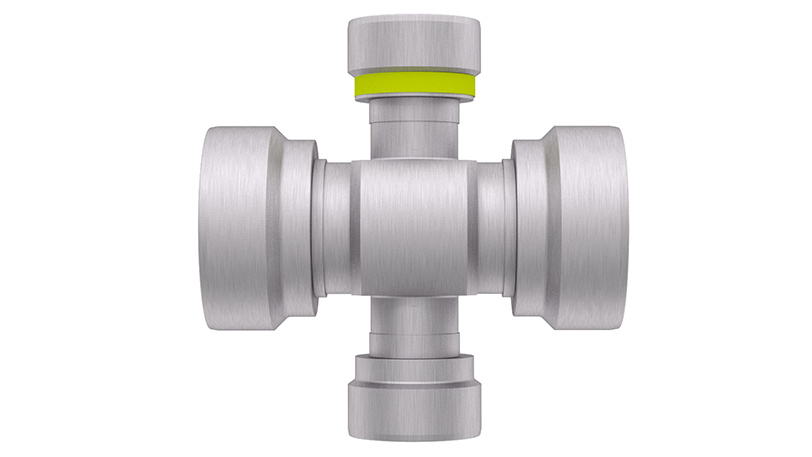

FIPE fittings for pipe dimensions from 12.0 to 88.9 mm are approved to 140 bar working pressure. A safety factor 4 guarantees enduring reliability. The redundant sealing system allows a leak-free pipe connection without any o-rings or gaskets.
Technical specifications
APPLICABLE FOR MEDIA | LIQUIDS OR GASES |
WORKING PRESSURE | 140 BAR |
MAX. TEST PRESSURE | 250 BAR |
COMPATIBLE PIPE DIMENSIONS | 12.0 – 88.9 MM | 1/4“ – 3“ |
MIN. | MAX. TEMPERATURE | -55°C | 300°C |
PIPE MATERIAL | STAINLESS STEEL OR STEEL |
PIPE PROCESSING | WELDED OR SEAMLESS PIPES |
DNV GL Group
Lloyd’s Register
ISO 19921: Fire resistance test of pipeline components
Technical center for ships and naval vessels
Test requirements
BURST PRESSURE | 560 BAR |
GAS TIGHTNESS | 70 BAR |
VIBRATION | 10 MILIONEN CYCLES |
VACUUM | 170 MBAR ABSOLUT PRESSURE |
PULL-OUT | 140 BAR WITH AXIAL LOAD OF 1.6 – 40 KN |
